Views: 0 Author: Site Editor Publish Time: 2026-07-17 Origin: Site
Bare flexible metal conduit (FMC) often falls short in demanding applications. Wet, corrosive, or high-traffic industrial environments easily compromise unprotected wiring. Manufacturers face a significant manufacturing challenge when trying to meet these rugged demands. Moisture and harsh chemicals degrade bare steel rapidly, leading to hazardous electrical failures. This is where the flexible metal conduit PVC coating machine becomes strictly essential.
It acts as the critical bridge between standard FMC production and high-margin, liquid-tight flexible metal conduit (LFMC). By applying a robust, seamless polymer jacket, you transform basic metal tubing into a highly durable, weather-resistant product. The purpose of this article is to provide plant managers, procurement engineers, and manufacturers with an objective framework. We will help you understand, evaluate, and shortlist PVC coating lines based on real-world operational realities and stringent global compliance standards.
A flexible metal conduit PVC coating machine is an extrusion line specifically engineered to apply a uniform, weather-resistant polymer jacket over corrugated metal tubing.
The fundamental components driving ROI include the vacuum extrusion head, multi-stage cooling troughs, and synchronized haul-off units.
Evaluating a machine requires looking beyond maximum theoretical line speed and focusing on tooling changeover times, jacket thickness consistency, and material versatility (PVC, PU, LSZH).
High-quality coating machines are mandatory for producing conduit that meets stringent global electrical standards, such as UL 360 and NEMA RN 1.
Standard FMC provides adequate mechanical protection for dry, indoor applications. However, it completely lacks the environmental sealing required for outdoor, HVAC, and heavy industrial wiring. Moisture, industrial oils, and corrosive gases easily penetrate bare metal corrugations over time. When these intrusive elements reach internal wiring, they cause rapid short circuits and severe electrical failures. Manufacturers need a reliable method to upgrade their existing product catalogs permanently. Offering liquid-tight variants is absolutely crucial for entering higher-margin commercial markets. The broader industrial sector demands these robust conduits for heavy-duty machinery and exposed outdoor installations.

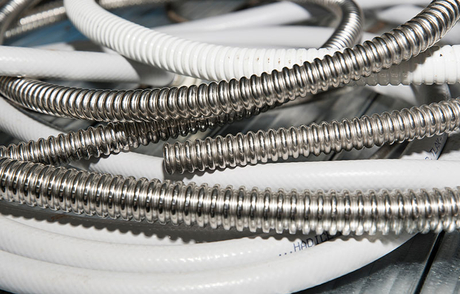

A flexible metal conduit PVC coating machine sits directly downstream from the initial conduit-forming process. It utilizes a highly controlled, continuous extrusion method. This specific process bonds a protective plastic layer securely onto the uneven, corrugated metal substrate. The equipment ensures the molten polymer securely wraps around the spiral profile of the core without creating air pockets. The metal core acts as the flexible skeleton, while the newly extruded polymer jacket acts as the impenetrable outer skin.
You know a deployment is successful when it meets several specific quality benchmarks. First, the final product must show absolutely zero jacket delamination during rigorous bend tests. Second, you need highly consistent wall thickness across entirely coiled lengths. Uneven walls lead to weak points and premature product failure in the field. Third, the equipment must sustain continuous production without experiencing frequent, unscheduled line stops. Achieving these operational outcomes heavily relies on precision engineering and robust machine components designed for heavy industrial use.
The heart of the entire extrusion line is the main extruder. Precise temperature zoning across the barrel is strictly non-negotiable for quality production. Specialized screw geometries are absolutely necessary to process distinct materials like PVC and LSZH correctly. If heating temperatures fluctuate, the polymer can degrade, scorch, or lose its structural integrity quickly. Proper screw design ensures a uniform melt throughout the entire heating zone. This creates a homogeneous plastic flow just before it reaches the die head. Reliable extrusion relies heavily on maintaining a highly stable melt pressure.
The crosshead die physically shapes the molten polymer into a tubular jacket around the moving conduit. Meanwhile, the integrated vacuum system performs a highly critical function behind the scenes. It actively pulls the molten PVC tightly into the intricate valleys and corrugations of the metal substrate. This strong vacuum application guarantees structural adhesion between the plastic skin and the metal skeleton. Without a powerful vacuum, the jacket would simply bridge across the highest ridges of the conduit. This bridging drastically sacrifices both the flexibility and the long-term durability of the final product.
Cooling flumes solidify the freshly applied polymer jacket. However, operators must carefully manage thermal shock during this crucial implementation phase. Gradient cooling is strictly required for high-quality, defect-free outcomes. If you plunge the hot conduit directly into freezing water, the PVC jacket will shrink too rapidly. It might even warp, crack, or peel off the metal core entirely due to severe contraction stress. A multi-stage water trough gradually lowers the temperature over several meters. This progressive cooling locks the polymer jacket in place seamlessly without inducing any stress fractures.
Pulling the conduit through the entire line requires exact, unwavering timing. Synchronized variable frequency drives (VFDs) control the heavy-duty caterpillar haul-off units. You must match the extrusion speed perfectly with the mechanical pulling speed. If the pull is too fast, the finished product will stretch dangerously thin, compromising electrical insulation properties. If it is too slow, the polymer will bunch up at the die head and cause a major line blockage. Synchronization ensures uniform dimensional stability from start to finish. To learn more about these internal mechanics, explore how a flexible metal conduit machine works.
Equipment brochures often highlight impressive maximum line speeds to attract buyers. However, we strongly advise buyers to remain deeply skeptical of these isolated "max speed" claims. True operational speed is rarely the theoretical maximum printed on a marketing specification sheet. Instead, it is strictly dictated by your available cooling capacity and the physical diameter of the conduit being run. Pushing an extrusion line past its effective cooling limit inevitably results in deformed or poorly cured jackets. You must balance throughput expectations with realistic curing times for different polymer materials.
Your machine must handle industry-standard ranges efficiently to remain highly profitable. Most modern facilities need production capabilities ranging from 3/8-inch up to 4-inch conduit. You also need to carefully evaluate the downtime required for swapping extrusion dies and sizing sleeves. Frequent tool changes eat directly into your daily production quotas. Quick-change tooling systems provide a distinct competitive advantage for facilities running multiple product sizes daily.
Conduit Diameter Range | Estimated Tooling Changeover Time | Typical Application Focus |
|---|---|---|
3/8" to 1" | 30 - 45 Minutes | Commercial HVAC, Indoor Industrial Wiring |
1-1/4" to 2" | 45 - 60 Minutes | Heavy Industrial Machinery, Outdoor Lighting Systems |
2-1/2" to 4" | 60 - 90 Minutes | Underground Utilities, Transit Infrastructure |
Market demands are shifting rapidly across global infrastructure projects. Standard PVC is no longer the only viable requirement for modern contractors. You must factor in these evolving market trends when selecting new capital equipment. Can the machine process Low Smoke Zero Halogen (LSZH) compounds smoothly? Can it handle specialized Polyurethane (PU) or High-Density Polyethylene (HDPE)? These specific materials cater to highly demanding markets. Transit systems, marine applications, and food processing plants often strictly require these advanced non-toxic, highly chemical-resistant jackets to meet local fire and safety codes.
Machine precision directly impacts your final product compliance. You simply cannot pass stringent standards like UL 360 (Liquid-Tight Flexible Steel Conduit) or NEMA guidelines with inconsistent coatings. The exact thickness of the jacket and its pull-off adhesion strength are strictly regulated by these testing bodies. Furthermore, the jacket must withstand specific oil immersion and intensive sunlight resistance tests. High-end extrusion equipment ensures you meet these exact physical tolerances on every single production run, avoiding costly batch rejections.
Modern compliance requires proactive and continuous line monitoring. Look for machines equipped with precision inline laser diameter gauges. High-voltage spark testers are also highly critical for basic quality assurance. These advanced inline tools detect microscopic pinholes, tears, or wall-thickness anomalies before the product is ever spooled. Catching defects early prevents massive raw material waste. It also ensures that compromised, unsafe products never reach your final shipping pallet.
Laser Diameter Gauges: Provide immediate real-time feedback to adjust extrusion speeds automatically.
High-Voltage Spark Testers: Identify invisible breaches in the polymer jacket instantly as the conduit passes through.
Tension Controllers: Prevent internal metal core breakage or elongation during the aggressive hauling process.
Sub-standard extrusion carries severe financial and legal consequences for manufacturers. It leads directly to rejected batches and expensive compliance failures during third-party audits. More importantly, it results in compromised electrical safety out in the field. When a polymer jacket fails prematurely, the underlying live electrical wiring becomes exposed to environmental hazards and human contact. Quality manufacturing equipment acts as your primary layer of risk mitigation. It actively protects both your brand reputation and the ultimate end-users.
Deploying a new extrusion line requires careful facility planning and robust preparation. Outline your physical space requirements very early in the procurement project. These complete lines often measure 15 to 25 meters in total length. You must also account for large unwinding stations and finished product accumulation zones. Furthermore, they demand high industrial power consumption continuously. The heater bands on the extruder barrel and the heavy-duty industrial chiller units require dedicated, high-amperage electrical infrastructure.
Anticipate predictable maintenance risks to avoid surprise production downtime. Screw barrel wear is very common due to corrosive PVC off-gassing over extended periods. Using bimetallic screws helps extend the lifespan of these critical moving parts. Additionally, the extrusion die nozzles experience continuous friction from the metal conduit and require frequent calibration and replacement.
Schedule regular inspections of the vacuum pump seals to maintain strong, uninterrupted adhesion pressure.
Clean the crosshead die meticulously after every production run to prevent polymer carbonization and flow blockages.
Monitor the water quality in the cooling flumes closely to prevent severe mineral scale buildup on the guides.
Lubricate the synchronized caterpillar haul-off chains weekly to ensure perfectly smooth, jerk-free pulling action.
When buying heavy manufacturing machinery, look far beyond the upfront capital cost alone. Select manufacturers who provide robust Factory Acceptance Testing (FAT) before shipping the equipment. Prioritize vendors offering strong local technical support and comprehensive operator training programs. A slightly cheaper machine often results in significantly longer commissioning times and perpetually higher scrap rates. To discuss your specific technical needs or to request detailed equipment layouts, feel free to contact us.
A flexible metal conduit PVC coating machine is a highly complex, synchronized extrusion system. It ultimately dictates the final quality, durability, and compliance of liquid-tight conduit. You cannot rely on basic or outdated machinery if you intend to meet rigorous industry standards like UL 360 or NEMA RN 1. Consistent wall thickness, excellent jacket adhesion, and reliable continuous production define successful operations in this highly competitive sector.
To take the next logical step, audit your current production bottlenecks carefully. Define your required diameter ranges and your preferred material types early in the planning phase. Once you establish these firm baselines, request detailed technical specifications from your shortlisted equipment manufacturers. Proper planning ensures a smooth installation process and highly reliable continuous production for years to come.
A: It usually ranges from 3/8 inch to 4 inches. However, extreme ends of the spectrum may require dedicated, size-specific machines to maintain optimal production efficiency and quality without excessive tooling adjustments.
A: Yes, but it requires specific screw designs and highly accurate temperature control. LSZH compounds are very shear-sensitive and will burn easily without precise, consistent thermal management inside the extruder barrel.
A: On modern machines, changing the crosshead die, adjusting the vacuum, and recalibrating the haul-off typically takes an experienced operator 30 to 60 minutes, depending on the jump in diameter size.
A: Yes, relying solely on ambient facility water is insufficient. An industrial chiller is required to maintain the precise water temperatures necessary to cure the PVC jacket instantly without causing dimensional deformation.
