In today's increasingly demanding electrical and electronic landscape, the need for high-performance cables is more critical than ever. Among the many specialized wire types available, Teflon cables—also known as PTFE (Polytetrafluoroethylene) cables—stand out for their exceptional resistance to heat, chemicals, and environmental stress. But producing these cables to exacting industry standards requires more than just raw materials. It calls for precise, specialized equipment, particularly Teflon cablemaking machines, designed to handle the complexities of extrusion and insulation.

This article explores the key applications of Teflon cables across various industries, and how advanced Teflon cable making machines are enabling manufacturers to meet growing performance, safety, and efficiency requirements.



What Makes Teflon Cables Unique?

Teflon, also known as PTFE (Polytetrafluoroethylene), is a high-performance fluoropolymer widely recognized for its exceptionally low coefficient of friction, outstanding thermal stability, and strong resistance to chemical corrosion. These characteristics make it a superior material for insulating wires and cables, especially in applications where standard materials like PVC, rubber, or polyethylene fall short.

When used in cable insulation, Teflon offers a host of critical advantages:

  • Thermal Resistance up to 260°C (500°F):
    Teflon maintains its structural and insulating properties across a broad temperature range, making it ideal for environments with continuous exposure to heat or thermal cycling—such as aerospace engines or industrial ovens.

  • Chemical Resistance to Oils, Fuels, Acids, and Solvents:
    Unlike many other polymers, PTFE is virtually inert to most chemicals. This makes Teflon cables suitable for harsh chemical plants, oil refineries, and labs where exposure to corrosive substances is common.

  • Excellent Dielectric Properties:
    PTFE has a low dielectric constant and high breakdown voltage, which ensures superior signal integrity in high-frequency or high-voltage environments. This is crucial for telecommunications, medical imaging, and RF applications.

  • Non-Stick and Flame-Retardant Qualities:
    Teflon's non-stick surface prevents debris buildup, while its flame-retardant nature enhances safety in environments where fire risk is a concern. Even when exposed to open flames, PTFE generates minimal smoke and resists combustion.

  • Minimal Signal Interference and High Insulation Reliability:
    Thanks to its exceptional insulating capabilities and resistance to electromagnetic interference, Teflon cables help maintain clean signal transmission, even in data-sensitive or high-noise environments like military radar systems or medical diagnostic tools.

Combined, these properties make Teflon cables a go-to choice for mission-critical environments where reliability, longevity, and performance cannot be compromised. From deep-space satellites to automated factory floors, Teflon-insulated wiring delivers consistent performance where others might fail.



Common Applications of Teflon Cables

1. Aerospace and Aviation

In aircraft systems, where weight, heat, and vibration are constant challenges, Teflon cables are used for:

  • Engine control wiring

  • Avionics systems

  • Power distribution

  • Radar and communication systems

Their lightweight profile and resistance to extreme temperatures make them ideal for aerospace environments.

2. Medical Equipment

PTFE-insulated cables are biocompatible and sterilizable, making them perfect for:

  • Surgical tools

  • Diagnostic devices

  • Imaging systems (MRI, CT, ultrasound)

  • Implantable electronics

The cables' durability ensures long-lasting performance even after repeated sterilization cycles.

3. Military and Defense

In defense systems, where reliability is non-negotiable, Teflon cables serve in:

  • Communications gear

  • Radar and sonar systems

  • Missile guidance

  • Armored vehicles and naval vessels

Their electromagnetic shielding and environmental tolerance are crucial to mission-critical functions.

4. Industrial Automation

PTFE-insulated wires are ideal for environments involving:

  • High-temperature manufacturing (e.g., glass or metal production)

  • Oil and gas processing

  • Robotics and automated machinery

Their durability under heat, abrasion, and chemical exposure extends the life of equipment and reduces maintenance downtime.

5. Telecommunications and High-Frequency Electronics

Because of their low dielectric constant and signal loss, Teflon cables are commonly used in:

  • RF (Radio Frequency) transmission lines

  • Antenna systems

  • Fiber optic networks

  • Data centers and server racks

Signal integrity is preserved even over long distances or in electromagnetically noisy environments.



Challenges in Manufacturing Teflon Cables

Despite their advantages, Teflon cables are not easy to produce. The extrusion process for PTFE insulation requires extremely high temperatures and meticulous control. PTFE does not melt like other thermoplastics—it must be extruded using a special paste extrusion method or high-temperature melt extrusion, depending on the type.

This complexity makes it essential to use specialized Teflon cable making machines that can:

  • Maintain uniform insulation thickness

  • Handle PTFE's thermal expansion and contraction

  • Apply high-pressure compaction for void-free insulation

  • Achieve tight tolerances in dielectric and mechanical properties

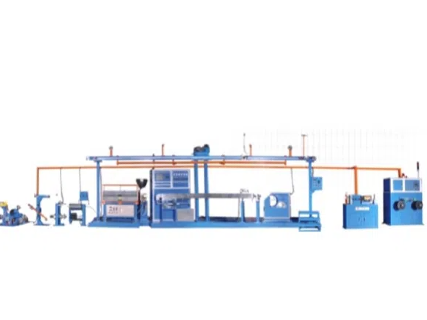

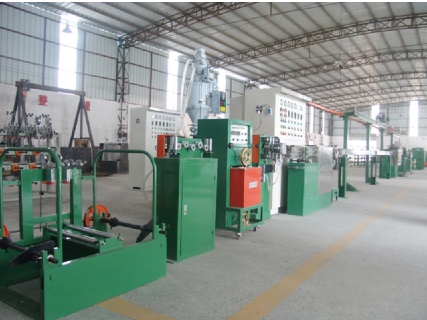

Role of Teflon Cable Making Machines in Modern Production

1. High-Precision Extrusion

Modern Teflon cable making machines are equipped with advanced extrusion dies, pressure systems, and real-time temperature controls to ensure consistent insulation. This minimizes material waste while ensuring product quality.

2. Automated Control Systems

Many machines now include PLC (Programmable Logic Controller) and HMI (Human-Machine Interface) systems that allow operators to monitor and adjust parameters like:

  • Line speed

  • Die pressure

  • Extrusion temperature

  • Wire centering

This automation reduces human error and increases overall productivity.

3. Integrated Cooling and Sintering Units

PTFE must be properly sintered (heated and fused) after extrusion to achieve its desired mechanical and dielectric properties. Modern cable making systems integrate sintering ovens and cooling systems to create a smooth, hardened cable sheath without cracks or voids.

4. Multi-Layer Insulation and Jacketing

Some Teflon cable applications require multi-layer construction, including shields and jackets. Advanced machinery supports co-extrusion or sequential extrusion, making it possible to produce complete cables in a single pass.

5. In-Line Inspection and Quality Control

To meet strict industry certifications (UL, CE, MIL-SPEC, etc.), manufacturers rely on in-line measurement tools integrated into the cable making machines:

  • Laser diameter gauges

  • Spark testers

  • Capacitance and eccentricity meters

These systems ensure every meter of cable meets exact specifications before it is spooled or cut.



Benefits of Investing in Specialized Teflon Cable Making Equipment

Manufacturers who invest in modern Teflon cable production technology can expect several competitive advantages:

  • Reduced downtime due to fewer defects or production errors

  • Faster lead times, allowing quicker delivery to customers

  • Improved product quality, ensuring customer satisfaction and brand trust

  • Energy efficiency through optimized heating and extrusion

  • Material savings by reducing insulation waste and scrap

Ultimately, using the right machine not only boosts efficiency but also helps meet growing market demand for high-performance cables in critical applications.



Trends and Future Outlook

As industries continue to push the boundaries of temperature, signal speed, and reliability, the demand for Teflon-insulated cables will only increase. Emerging applications like electric vehicles, smart medical implants, and 5G infrastructure require compact, lightweight, and ultra-reliable cables.

To meet this need, cable manufacturers must upgrade their production capabilities with dedicated Teflon cable making machines that can offer:

  • Modular design for flexible line configuration

  • IoT-based predictive maintenance features

  • AI-integrated control for zero-defect manufacturing

Innovation in production is just as important as innovation in end-product use.



Conclusion

Teflon cables have proven indispensable across industries requiring high thermal, chemical, and electrical performance. But producing these cables to exact standards demands more than raw materials—it requires dedicated, high-performance cable making machinery built to handle PTFE's unique properties.

Whether you're producing cables for aerospace, medical, industrial, or telecommunications use, having the right equipment ensures your cables deliver reliability and performance in the most demanding conditions.

If you're exploring how to optimize your Teflon cable production with modern, efficient, and precise machinery, consider reaching out to Yuyao At Machinery Co., Ltd.. As a specialist in wire and cable manufacturing equipment, they offer the tools and technical expertise needed to help your production process match the quality demands of today's high-performance markets.
