Yuyao At Machinery Co.,Ltd as a professional manufacturer is mainly engaged in the manufacture of plastic extrusion machinery &metal hose forming machinery. We can provide specialized and tailor-made machines for domestic and overseas markets.With the principle of high-quality products and best service, we always be creative and make our effort to provide good quality machines for customers.The main products of our company are flexible metal conduit machine, flexible shower hose machine,stainless steel flexible corrugated gas hose machine;stainless steel flexible sprinkler hose machine,flexible metal hose PVC coating machine, Steel pipe PE/PVC coating Machine, plastic extrusion machine etc. Welcome to inquire us and hope to build a successful cooperative relationship.

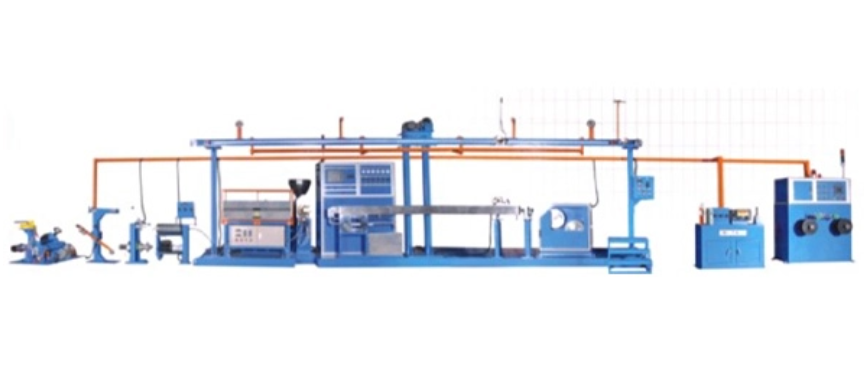

Our ETFE/PEP/PFA Teflon wire cable making machine is a high-precision extrusion solution designed for manufacturing high-performance fluoroplastic insulated wires and cables. As a leading Teflon wire cable extrusion machine manufacturer, we engineer this equipment to handle the unique processing requirements of ETFE, PEP and PFA materials, which are renowned for their exceptional thermal stability, chemical resistance and electrical insulation properties. This PFA/ETFE wire cable extruder machine delivers consistent extrusion quality with tight dimensional tolerance control, making it ideal for producing specialized wires used in demanding industrial environments. The integrated production line seamlessly combines pay-off, extrusion, cooling, traction and take-up processes, ensuring high efficiency and reliable operation for continuous production runs.
Precision Extrusion Control: Equipped with advanced screw design optimized for fluoroplastic materials, our Teflon wire cable making equipment achieves uniform insulation thickness with tolerance as low as ±0.01mm, eliminating defects and reducing material waste.
High Temperature Processing Capability: The extruder barrel and screw are constructed from high-grade alloy steel with special surface treatment, enabling stable operation at temperatures up to 450°C, suitable for processing all types of Teflon-based materials.
Modular Design: The machine features a modular structure that allows easy customization to meet specific production needs, including different wire diameter ranges and output requirements.
Energy Efficient Operation: Optimized heating system and variable frequency drive technology reduce energy consumption by up to 20% compared to conventional extruders, lowering operational costs for industrial manufacturers.
User-Friendly Interface: Intuitive touch screen control panel provides real-time monitoring of all production parameters, enabling quick setup and easy operation with minimal training.
Parameter | AT-Φ15×25D | AT-Φ20×25D | AT-Φ25×25D | AT-Φ28×25D | AT-Φ30×25D | AT-Φ40×25D |
Pay-off Reel | 130-200mm | 130-200mm | 200-300mm | 200-300mm | 200-400mm | 300-500mm |
Screw Diameter | 15mm | 20mm | 25mm | 28mm | 30mm | 40mm |
L/D Ratio | 28:1 | 28:1 | 28:1 | 25:1 | 25:1 | 25:1 |
Output Capacity | 2.5Kg/h | 4Kg/h | 6Kg/h | 7Kg/h | 7.5Kg/h | 45Kg/h |
Main Power | 3Hp | 4Hp | 5Hp | 5Hp | 5Hp | 15Hp |
Finished Wire Diameter | 0.2-0.4mm | 0.2-0.6mm | 0.3-0.8mm | 0.3-1mm | 0.3-1.5mm | 0.8-2.5mm |
Vacuum Pump Power | 200W | 200W | 400W | 400W | 400W | 400W |
Cooling Device | U Shape steel water trough | U Shape steel water trough | U Shape steel water trough | U Shape steel water trough | U Shape steel water trough | U Shape steel water trough |
Storage Wire Length | 200m | 200m | 200m | 200m | 200m | 400m |
Tractor Power | 1Hp | 2Hp | 2Hp | 2Hp | 2Hp | 3Hp |
Tractor Speed | 150m/min | 150m/min | 200m/min | 200m/min | 200m/min | 400m/min |
Take-up Device Power | 2Hp | 2Hp | 2Hp | 2Hp | 2Hp | 3Hp |
Take-up Reel | 200-300mm | 200-300mm | 200-300mm | 200-300mm | 200-300mm | 400-500mm |
This ETFE/PEP/PFA Teflon wire cable making machine is widely used in industries that require high-performance insulated wires, including aerospace, automotive electronics, medical equipment, telecommunications, chemical processing and semiconductor manufacturing. It is ideal for producing wires used in high-temperature environments, corrosive atmospheres and applications requiring excellent electrical insulation properties, such as sensor wires, heating cables, aerospace wiring harnesses and medical device leads.
With over 15 years of experience in manufacturing plastic extrusion machinery, we have established a reputation for delivering high-quality, reliable equipment to business clients worldwide. Our state-of-the-art production facility is equipped with advanced machining equipment and strict quality control systems, ensuring every machine meets international standards. We provide comprehensive after-sales support, including on-site installation and training, 12-month warranty, lifetime technical assistance and spare parts supply. Our team of experienced engineers is available 24/7 to address any technical issues and provide customized solutions to meet your specific production requirements.
Our Teflon wire cable extrusion machine is specifically designed to process ETFE, PEP, PFA and other fluoroplastic materials. We can also customize the machine to process other engineering plastics upon request.
Yes, we offer full customization services, including different wire diameter ranges, output capacities and additional features such as online diameter measurement and spark testing.
Standard models are typically delivered within 30-45 days after receiving the deposit. Customized machines may require 45-60 days depending on the complexity of the requirements.
Yes, we provide free on-site training for your operators and maintenance staff, covering machine operation, maintenance and troubleshooting.
