Yuyao At Machinery Co.,Ltd as a professional manufacturer is mainly engaged in the manufacture of plastic extrusion machinery &metal hose forming machinery. We can provide specialized and tailor-made machines for domestic and overseas markets.With the principle of high-quality products and best service, we always be creative and make our effort to provide good quality machines for customers.The main products of our company are flexible metal conduit machine, flexible shower hose machine,stainless steel flexible corrugated gas hose machine;stainless steel flexible sprinkler hose machine,flexible metal hose PVC coating machine, Steel pipe PE/PVC coating Machine, plastic extrusion machine etc. Welcome to inquire us and hope to build a successful cooperative relationship.

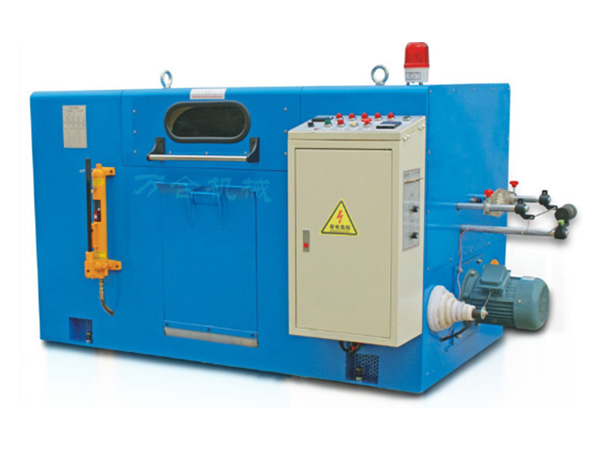

Copper Wire Bunching Machine, also known as copper wire twisting machine and copper wire stranding machine, is an essential pre-processing equipment in the wire and cable manufacturing industry. It is specifically designed to twist multiple single copper wires into a uniform and compact conductor before PVC or PP insulation extrusion, which significantly improves the flexibility and electrical conductivity of the final cable products. Yuyao At Machinery Co., Ltd., a leading manufacturer of plastic extrusion and metal hose forming machinery, offers a full range of high speed copper wire bunching machines with stable performance and customizable configurations to meet diverse production needs of industrial manufacturers worldwide.
Our high speed copper wire bunching machine adopts advanced transmission and control systems, achieving rotation speeds up to 3000rpm/min for the AT-HST-Φ300 model. This high-speed operation greatly shortens production cycles and enhances overall output capacity for cable producers.
The machine series covers a broad range of brass single wire diameters from 0.05-1.0mm and intertwist wire cross sections from 0.0137-10mm², making it suitable for manufacturing various specifications of power cables, communication cables and control cables.
Equipped with different sizes of wire-receiving wheels, the maximum copper load weight reaches 900kg for the AT-HST-Φ800 model. This reduces frequent reel changes, minimizes production interruptions and saves labor costs.
Each machine is designed with a compact footprint to save valuable workshop space. High-quality steel materials and precision manufacturing ensure long service life and low maintenance requirements even under continuous heavy-duty operation.
High speed copper wire bunching machine/Technical Parameter | ||||
Model type | AT-HST-Φ300 | AT-HST-Φ500 | AT-HST-Φ630 | AT-HST-Φ800 |
Rotation speed | 3000rpm/min | 2500rpm/min | 1800rpm/min | 1200rpm/min |
Brass single wire diameter | Φ0.05~0.16mm | Φ0.08~0.45mm | Φ0.10~0.8mm | Φ0.38~1.0mm |
Twist pitch | 1.60~17.10mm | 4.46~40.49mm | 11.46~62.67mm | 23.74~142.78mm |
Cross section of intertwist | 0.0137~0.45mm2 | 0.05~2.5mm2 | 0.20~6mm2 | 0.25~10mm2 |
The max size of wire- | Φ300×134×Φ30mm |
|
| Φ800×600×Φ80mm |
Copper load weight | MAX30kg | MAX250kg | MAX350~450kg | MAX900kg |
Machine size | 1900×750×950 | 2026×1020×1200mm | 2690×1300×1400mm | 3670×1500×1600mm |

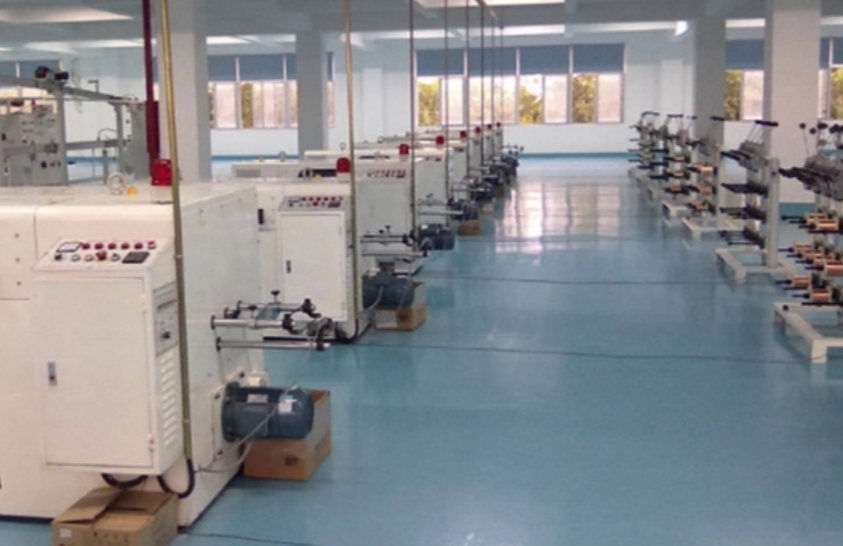

Copper wire stranding machine is indispensable in the wire and cable manufacturing process. It is widely used for twisting multi copper wires to produce conductors for household electrical wires, power distribution cables, telecommunication cables, automotive wiring harnesses and industrial control cables. The twisted conductors produced by our machines have uniform pitch, tight structure and excellent electrical performance, ensuring the quality and reliability of final cable products.
Yuyao At Machinery Co., Ltd. has years of experience in manufacturing plastic extrusion and metal processing machinery. We have a professional R&D team and strict quality control system, ensuring every copper wire bunching machine meets international standards. We provide comprehensive services including pre-sales technical consultation, customized machine design, on-site installation and debugging, operator training, spare parts supply and lifelong technical support. Our machines are exported to many countries and regions, earning high recognition from industrial buyers worldwide.
Our machine series offers different load capacities ranging from 30kg to 900kg to meet various production scales. The AT-HST-Φ800 model supports the maximum load of 900kg.
Yes, we can customize the twist pitch range based on your cable specifications to ensure optimal conductor performance.
Standard models usually take 15-25 working days for production. Customized machines may require additional time depending on the complexity of modifications.
Yes, we can dispatch experienced technicians to your factory for on-site installation, debugging and operator training to ensure smooth operation of the equipment.
